- MDL No.: EH017/FM Series

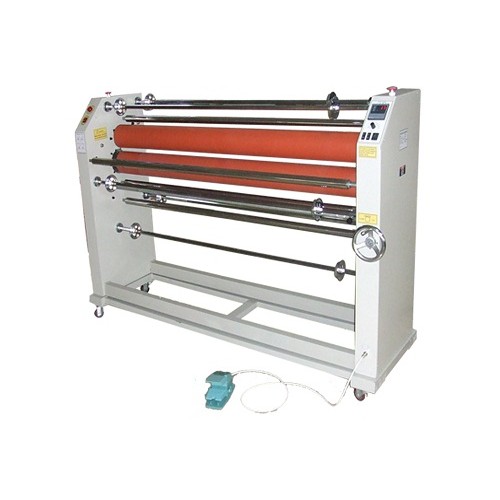

Hot Roller Laminator
- Upper and lower unwinding of double sided tape with both wax paper rewinding
- Mobility of machine is easy with the four wheel castors
- Ergonomic design
- Rollers are made of non-adhesive rubber
- The machine comes with foot pedal for sheet operation
Wide Format Hot Laminator
| MODEL NO. | EH017/LX-1300 | EH017/LX-1600 |
| Laminating Width (mm) | 1300 | 1600 |
| Laminating Speed (m/min) | 0~5 | |
| Max. Heating Temperature (°C) | 140 | |
| Power Supply | 220V/1PH/50C | |
| Motor (W) | 180 | |
| Weight (kg) | 380 | 450 |
| Dimensions (cm) | 180 X 62 X 140 | 210 X 62 X 140 |
| Max. Lifting of Upper Roller (mm) | 20 | |
| Roller Diameter (mm) | 130 | |
